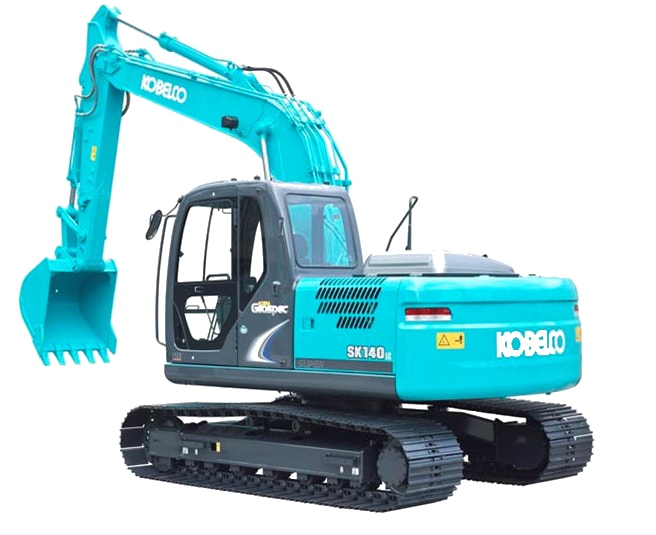

SK140HDLC
SK140HDLC
SK140HDLC
Model
SK140HDLC
Performance
Bucket Capacity
ISO heaped m
3
0.6-0.7
Swing Speed
min
-1
{rpm}
11.0 {11.0}
Travel Speed
km/h
5.6/3.4
Gradeability
% {°}
70 {35}
Bucket Digging Force
kN {tf}
89.2 {9.1}
Arm Crowding Force
kN {tf}
71.9 {7.3}
Drawbar Pulling Force
kN {tf}
139 {14.2} (ISO 7464)
Weight
Operating Weight
Kg
13,100
Ground Pressure
kPa {kgf/cm
2
}
39 {0.40}
Shoe Width
mm
500
Engine
Model
MITSUBISHI D04FR
Type
Direct injection, water-cooled, 4-cycle, 4 cylinder diesel engine with turbocharger, intercooler
Power Output
kW/min-1
99(79)/2,000
Max. Torque
N.m/min-1
375 / 1,600
Displacement
L
4.249
Fuel Tank
L
275
Hydraulic System
Pump
Two variable displacement pumps + one gear pump
Max. Discharge Flow
L/min
2 x 130, 1 x 20
Relief Valve Setting
MPa {kgf/cm2}
34.3{350}
Swing Motor
Axial-piston motor
Travel Motors
2 x axial-piston, two-step motors
Hydraulic Oil Tank
L
172: System (101 Tank oil level)
