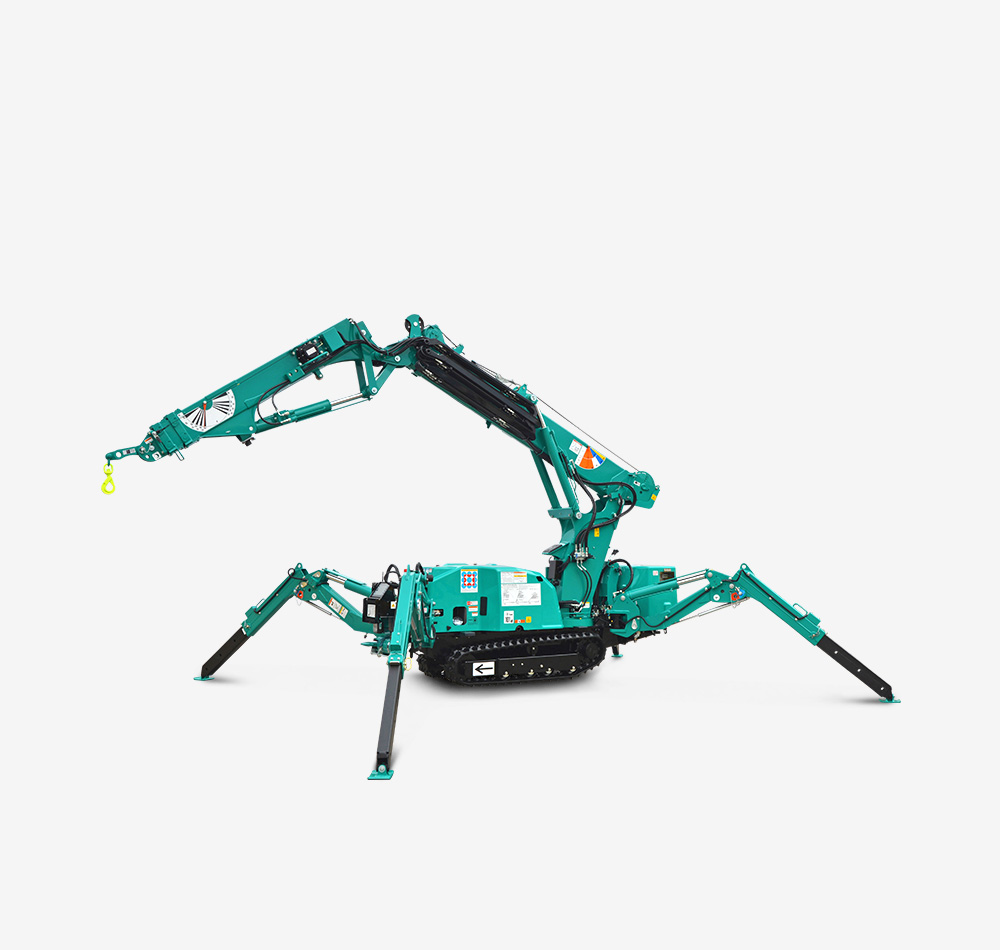

MK1033CW-1

General Specification

ModelMK 1033CW-1

  • Crane Capacity
  •
  • 0.995t x 1.3m
  • Max. Working Radius
  •
  • 9.9m x 0.18t
  • Max. Lifting Height
  •
  • 11.3m
  • Max. Reach Below Ground
  •
  • -66.5m (single fall)
  • Outrigger Max. Extended Width
  •
  • (Lateral) 4,580mm x (Front) 4,530mm x (Rear) 3,810mm
  • Travel Speed
  •
  • 0-2.0 km/h
  • Travel Ground Pressure
  •
  • 57.6kpa
  • Engine
  •
  • YANMAR 2TNV70-NMBA/ Diesel
  • Engine Rated Output
  •
  • 7.4kw/2,500rpm
  • Electric Motor
  •
  • 5.5kw, 4P 380V
  • Dimensions (MK 1033CW-1)
  •
  • 2,900mm x 750mm x 1,955mm
  • Dimensions (MK 1033CWH-1)
  •
  • 3,030mm x 750mm x 1,990(1,995)mm
  • Dimensions (MK 1033CWE-1)
  •
  • 3,235mm x 750mm x 1,995mm
  • Dimensions (MK 1033CWEH-1)
  •
  • 3,235mm x 750mm x 1,990(1,995)mm
  • Machine Weight (MK 1033CW-1)
  •
  • 2,290kg (2,000kg)
  • Machine Weight with winch (MK 1033CWH-1)
  •
  • 2,390kg
  • Machine Weight with electric motor(MK 1033CWE-1)
  •
  • 2,270kg
  • Machine Weight with winch and electric motor (MK 1033CW-1)
  •
  • 2,370kg
