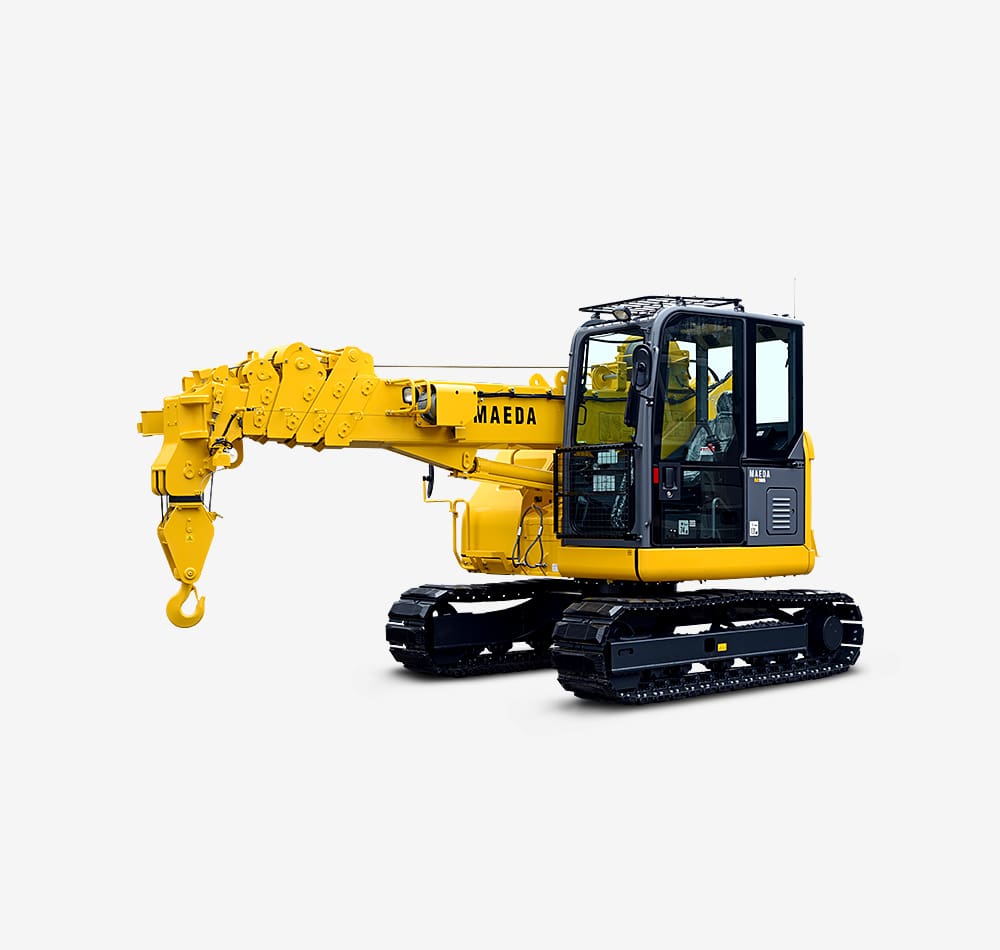

CC 985S-1

General Specification

ModelCC 985S-1

  • Crane Capacity
  •
  • 4.9t x 2.1m
  • Max. Working Radius
  •
  • 14.67m x 0.20t
  • Max. Lifting Height
  •
  • 16.50m (20.2m with fly jib)
  • Max. Reach Below Ground
  •
  • -25.0m (4 falls)
  • Pick & Carry Capacity
  •
  • 2.0t
  • Travel Speed (Low)
  •
  • 30.0m/min (4 layers, 4 falls)
  • Travel Speed (High)
  •
  • 44.0m/min (4 layers, 4 falls)
  • Engine
  •
  • ISUZU 4LE2XDPC/ Diesel
  • Engine Rated Output
  •
  • 40.3kw/2,000 rpm
  • Dimensions
  •
  • 5,190mm x 2,320mm x 2,730mm
  • Machine Weight
  •
  • 9,450kg (9,630kg with fly jib)
