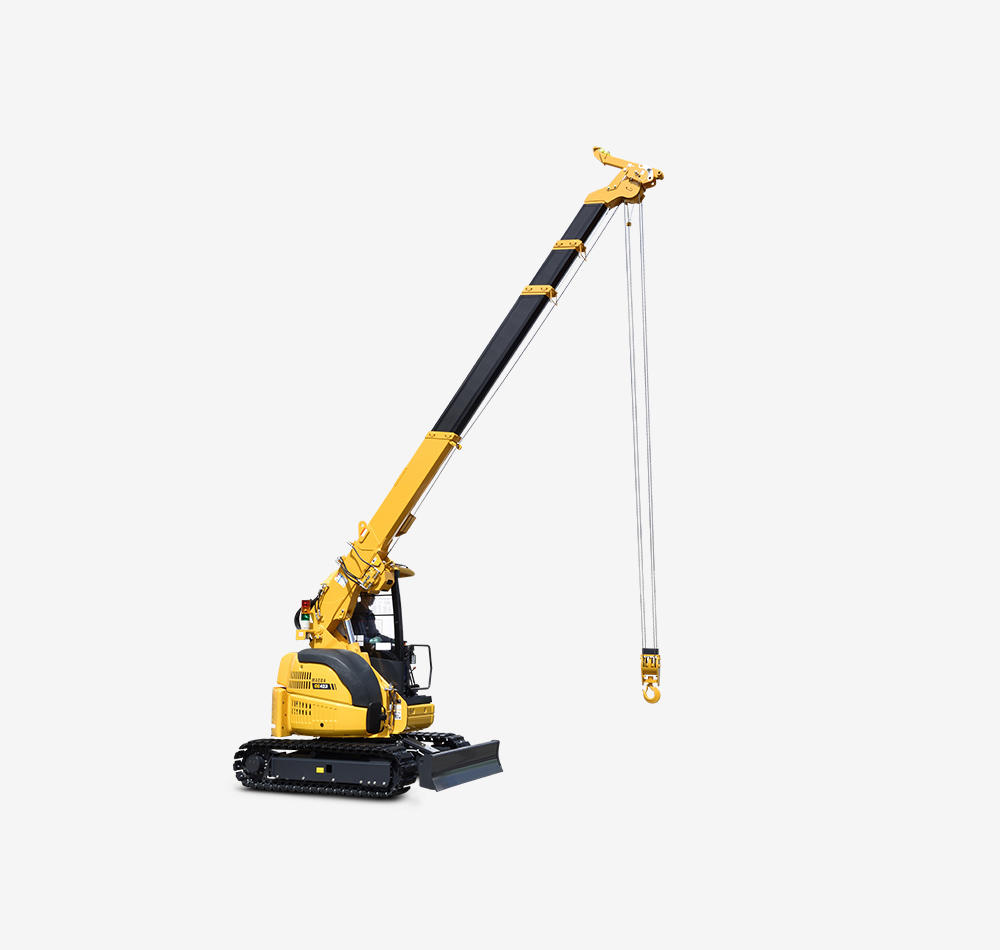

CC 423S-1

General Specification

ModelCC 423S-1

  • Crane Capacity
  •
  • 2.93t x 1.5m
  • Max. Working Radius
  •
  • 8.38m x 0.20t
  • Max. Lifting Height
  •
  • 9.46m
  • Max. Reach Below Ground
  •
  • -15.5m (4 falls)
  • Pick & Carry Capacity
  •
  • 1,465 kg
  • Travel Speed (Low)
  •
  • Forward & Backward 0- 2.9km/h
  • Travel Speed (High)
  •
  • Forward & Backward 0- 4.6km/h
  • Engine
  •
  • YANMAR 3TNV88F-EPMBA/ Diesel
  • Engine Rated Output
  •
  • 17.5kw/2,400rpm
  • Overall Dimensions
  •
  • 4,020mm x 1,740mm x 2,495mm
  • Crawler Dimension
  •
  • 1,650mm x 300mm
  • Machine Weight
  •
  • 4,400kg
