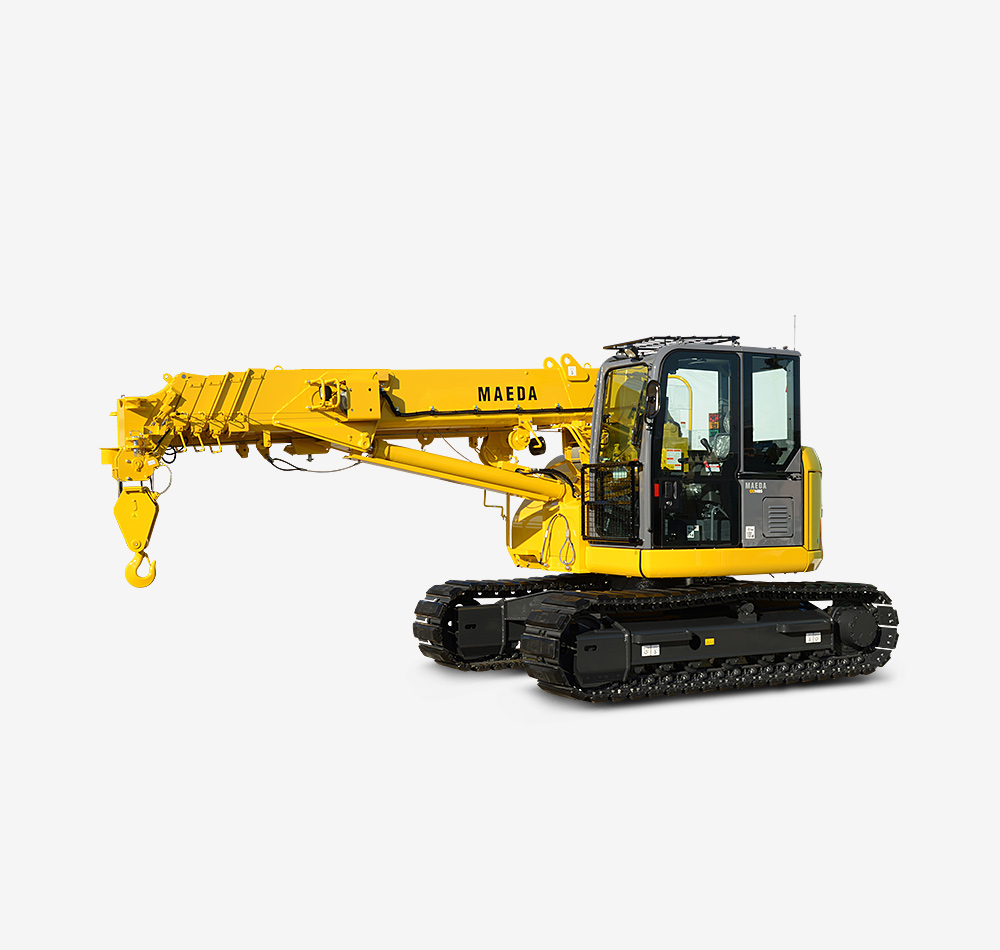

CC 1485S-1

General Specification

ModelCC 1485S-1

  • Crane Capacity
  •
  • 6.0t x 2.6m
  • Max. Working Radius
  •
  • 16.1m
  • Max. Lifting Height
  •
  • 16.7m (22.0m with fly jib)
  • Max. Reach Below Ground
  •
  • -24.5m (4 falls)/ -50.5m (2falls)/ -103.5m(single fall)
  • Pick & Carry Capacity
  •
  • 2.0t
  • Travel Speed (Low)
  •
  • 0-1.9 km/h
  • Travel Speed (High)
  •
  • 0-3.2 km/h
  • Engine
  •
  • ISUZU 4LE2XDPC/ Diesel
  • Engine Rated Output
  •
  • 40.3kw/ 2,000 rpm
  • Dimensions
  •
  • 6,560mm x 2,490mm x 2,865mm
  • Machine Weight
  •
  • 14,400kg (14,700kg with fly jib)
