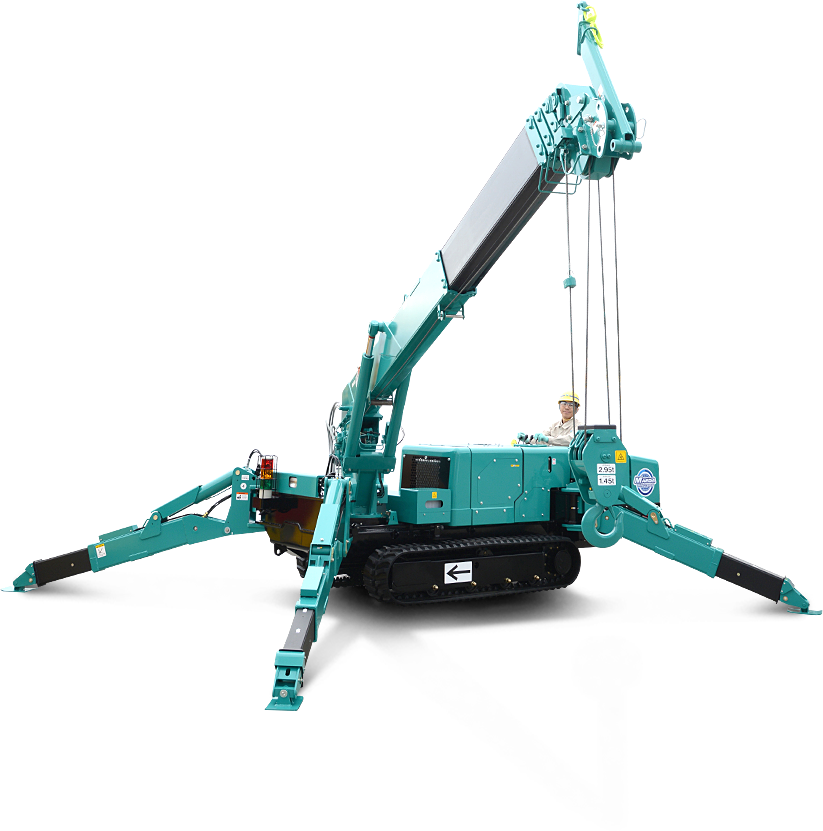

MC305C-2

General Specification

ModelMC305C-2

  • Crane Capacity
  •
  • 2.98t x 2.5m
  • Max. Working Radius
  •
  • 12.16m x 0.26t
  • Max. Lifting Height
  •
  • 12.52m
  • Max. Reach Below Ground
  •
  • -16.09m (4 falls)
  • Outrigger Max. Extended Width
  •
  • (Lateral) 4,888mm x (Front)
    4,504mm x (Rear) 4,396mm
  • Travel Speed
  •
  • 0-2.8km/h
  • Engine
  •
  • YANMAR 3TNV76 / Diesel
  • Engine Rated Output
  •
  • 15.2kw/2,500rpm
  • Electric Motor
  •
  • 5.5kw, 4P 380V
  • Dimensions
  •
  • 4,285mm (L) x 1,280mm (W) x 1,695mm (H)
  • Machine Weight
  •
  • 3,900kg (4,080kg with electric motor)
